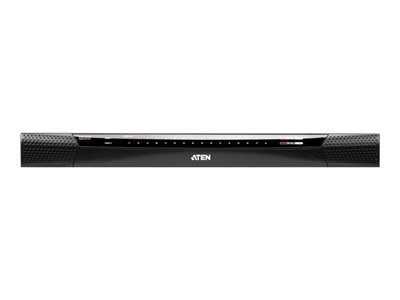

ATEN KN8132v - KVM / audio switch - 32 ports - rack-mountable

ATEN KN8132v - KVM / audio switch - 32 ports - rack-mountable

  • Price:
    $7,999.99
  • Availability:
  • Mfr #:  KN8132V
  • UNSPSC #:  43211604
  • Item #:  003398631
  • Add to Shopping List
  • cnet cat code #:  10060101
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Cables Included 2 x serial adapter
Rack Mounting Kit Included
Compliant Standards RoHS, FIPS 140-2 Level 1
Dimensions & Weight
Width 16.2 in
Depth 17.1 in
Height 1.7 in
Weight 12.79 lbs
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Humidity Range Operating 0 - 80% (non-condensing)
Min Storage Temperature -4 F
Max Storage Temperature 140 F
General
Device Type KVM / audio switch - 32 ports - cascadable
Enclosure Type Desktop, rack-mountable 1U
Subtype KVM
Ports 32 x KVM / audio
KVM Local Users Qty 1 local user
KVM IP Users Qty 8 IP users
Server Connection Via Twisted Pair CAT6
Keyboard / Mouse Interface Sun, PS/2, USB
Max Cascading Depth 2
Remote Management Protocol SNMP
Encryption Algorithm DES, Triple DES, RC4, 256-bit AES, 128-bit SSL, 2048-bit RSA
Authentication Method RADIUS, LDAP, Active Directory
Max Resolution 1920 x 1200 @ 60 Hz
Features Syslog support, MAC address filtering, IPv6 support, IP address filtering, firmware upgradable, SMTP traffic control, Mouse DynaSync, EDID Management
Status Indicators Power, select, link/activity
Expansion / Connectivity
Interfaces 3 x USB Type A 32 x KVM / audio RJ-45 2 x 1000Base-T RJ-45 1 x modem RJ-45 2 x audio mini-jack 1 x console RJ-45 2 x RJ-45 1 x VGA HD-15 1 x DVI-D 1 x keyboard (USB) Type A 1 x mouse (USB) Type A 1 x mini-USB
Power
Power Device Internal power supply
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required Apple MacOS 9.0 or later, Microsoft Windows 2000 or later, IBM AIX 4.3 or later, Novell NetWare 5.0 or later, Red Hat Linux 7.1 or later, SunSoft Solaris 8 or later, Mandrake Linux 9.0 or later, Red Hat Fedora Core 2 or later, SuSE Linux 9.0 or later, Microsoft DOS 6.2 or later, FreeBSD 4.2 or later
