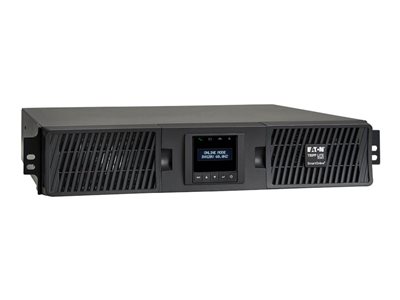

Tripp Lite UPS 2000VA 1800W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower - UPS - 1800 Watt - 2200 VA
Tripp Lite UPS 2000VA 1800W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower - UPS - 1800 Watt - 2200 VA
- Price:
$1,703.99
- Availability:
- Mfr #: SU2200RTXLCDN
- UNSPSC #: 26111701
- Item #: 003797304
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft ¦ USB cable - external ¦ 2 x serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, LCD display, voltage monitoring, LED indicators, noise filtering, overvoltage protection, built-in bypass switch, undervoltage protection, cold-start function, cooling fan, Remote Emergency Power Off (REPO), hot-swappable batteries, Energy-Saving Outlets |
| Compliant Standards | CSA, UL 1778, RoHS, FCC Part 15 A, EMI |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 19 in |
| Height | 3.5 in |
| Weight | 48.5 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 2 years |
Battery
| Type | Expandable |
| Run Time (Up To) | 4 min at full load ¦ 12 min at half load |
| Recharge Time | 3 hours |
Environmental Parameters
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 57 dBA |
General
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Output Connectors | 7 x power NEMA L5-20, power NEMA 5-15R/20R |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 100/110/115/120/127 V |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 6 x power NEMA 5-15R/20R (UPS and surge) ¦ 1 x power NEMA L5-20 (UPS and surge) |
| Output Voltage | AC 100/110/115/120/127 V 50/60 Hz |
| Max Electric Current | 16 A |
| Power Capacity | 1800 Watt / 2200 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Response Time | 0 ns |
| Surge Energy Rating | 570 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 94% |
| Power Factor (PF) | 0.82 |
Expansion / Connectivity
| Interfaces | 1 x EPO (emergency power off) - RJ-11 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x monitoring - 6 pin mini-DIN (PS/2 style) ¦ 1 x serial - 8 pin mini-DIN |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.5 in |
| Shipping Depth | 19.9 in |
| Shipping Height | 8.6 in |
| Shipping Weight | 62.61 lbs |
Software / System Requirements
| Software Included | TrippLite PowerAlert |
| OS Required | Apple MacOS X, Microsoft Windows |
