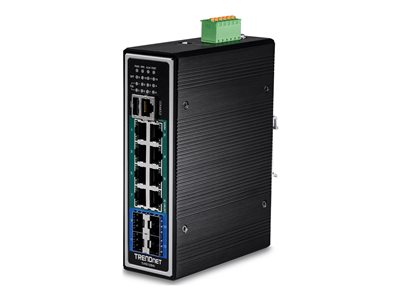

TRENDnet TI-PG1284I - switch - 12 ports - managed
TRENDnet TI-PG1284I - switch - 12 ports - managed
- Price:
$832.99
- Availability:
- Mfr #: TI-PG1284I
- UNSPSC #: 43222612
- Item #: 003945776
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 1 x console cable |
| MTBF | 322,805 hours |
| Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC 61000-6-2:2005 |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 2 in |
| Depth | 5.2 in |
| Height | 6.7 in |
| Weight | 32.45 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
| Service & Support Details | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Switch - 12 ports - L2+ - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 24 Gbps ¦ Forwarding performance: 17.86 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm | SSL, MODBUS |
| Features | VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, half duplex mode, full duplex mode, SNTP support, surge protection, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, bandwidth control, IPv4 support, DHCP relay, IP-MAC binding, SNMP trap, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), built-in DIP switch, Class of Service (CoS), auto provisioning, Loopback, 8KV ESD Protector, IGMP proxy, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IGMP filtering, IP source guard, ARP inspection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM | 128 MB |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x console RJ-45 ¦ 4 x 1000Base-X SFP |
Power
| Power Device | External power adapter |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 240 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 Watt |
