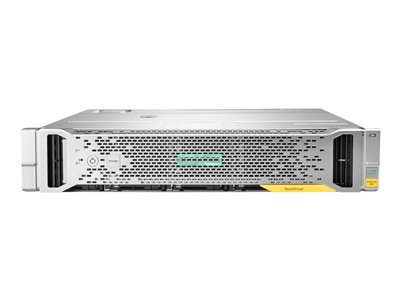

HPE StoreVirtual 3200 SFF - hard drive array

HPE StoreVirtual 3200 SFF - hard drive array

  • Price:
    $9,053.99
  • Availability:
  • Mfr #:  N9X24A
  • UNSPSC #:  43201614
  • Item #:  004222688
  • Add to Shopping List
  • cnet cat code #:  10050504
Need Help? Contact your Zones Account Manager or call 800.408.9663
Chassis
Installed Devices / Modules Qty 0
Supported Devices / Modules Qty 25
Supported Drives SAS-3
Miscellaneous
Compliant Standards BSMI CNS 13438 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, UL 60950, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, China RoHS, AS/NZS CISPR22:2006 Class A, VCCI - V-3/2014.04, ICES-003 issue 5 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA-C22.2 No. 60950-1
Included Accessories Rack mounting kit, 2 power cords
Processor
Type 2 x
Dimensions & Weight
Width 19 in
Depth 23.5 in
Height 3.5 in
Weight 57.98 lbs
Hard Drive
Type No HDD
Storage
Max Supported Capacity 288 TB
HDD Array External Interface 8Gb Fibre Channel, 16Gb Fibre Channel
Maximum LUNs 2
Storage Controller
Type RAID
Installed Qty 2
Interface Type SAS 12Gb/s
Data Transfer Rate 1.2 GBps
Cache / Buffer Size (Max) 2 GB
RAID Level RAID 5, RAID 6, RAID 10
System Requirements
OS Required Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 with Hyper-V, Ubuntu 12.04 LTS Server Edition, VMware ESXi 6.0
Manufacturer Warranty
Service & Support Limited warranty - parts - 3 years
Storage Controller (2nd)
Installed Qty 2
Environmental Parameters
Min Operating Temperature 50 F
Max Operating Temperature 95 F
Humidity Range Operating 10 - 90%
Sound Emission 67 dB
General
Device Type Hard drive array
Enclosure Type Rack-mountable - 2U
Expansion / Connectivity
Expansion Bays 25 (total) / 25 (free) x hot-swap - 2.5" SFF
Interfaces 4 x 8Gb Fibre Channel / 16Gb Fibre Channel - SFP+ 1 x management 1 x management - 9 pin Micro-USB Type B 1 x management - RJ-45 4 x USB 1 x Ethernet 1000
Power
Power Device 2 x internal power supply - hot-plug
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V - 50/60 Hz
RAM
Installed Size 16 GB
