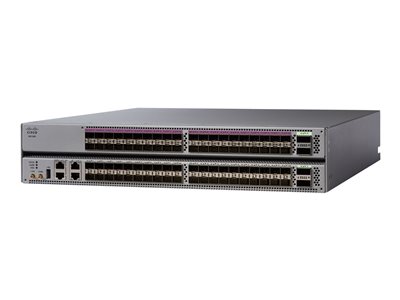

Cisco Network Convergence System 5002 - router - rack-mountable - with
Cisco Network Convergence System 5002 - router - rack-mountable - with
- Price:
$115,992.99
- Availability:
- Mfr #: NCS-5002-SAT-BUN
- UNSPSC #: 43222609
- Item #: 004639886
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Dimensions & Weight
| Width | 17.4 in |
| Depth | 19.3 in |
| Height | 3.4 in |
| Weight | 32.98 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Router - with Cisco NCS 5002 Series Satellite Enablement License (NC5002-SAT-LIC) |
| Enclosure Type | Rack-mountable - 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Throughput: 1.2 Tbps |
| Jumbo Frame Support | 9216 bytes |
| Network / Transport Protocol | DHCP |
| Routing Protocol | IS-IS, BGP, IGMP, OSPFv2, PIM-SM, static IP routing, OSPFv3, PIM-SSM, ECMP, IS-ISv6, MPLS |
| Remote Management Protocol | SNMP, SNMP 3, SSH, CLI |
| Authentication Method | TACACS+ |
| Features | RPL support, MPLS support, VLAN support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Bidirectional Forwarding Detection (BFD), Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), redundant hot swappable fans, Ingress Layer 2 MAC Access Control Lists (ACLs), Label Distribution Protocol (LDP), iPXE, Layer 3 VPN (L3VPN) support, Zero-touch provisioning (ZTP), Segment Routing Traffic Engineering (SR-TE), network virtualization (NV) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1ad, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1 Second Edition, NEBS, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, ETS300019-2-1 Class T1.2, ETS300019-2-2 Class T2.3, GB4943.1-2001, EN 55022 Class A, EN 300 386, ETS 300 019-2-3 |
| RAM | 16 GB |
| Status Indicators | Power, link/activity, fan |
Expansion / Connectivity
| Interfaces | 80 x 10Gb Ethernet / 1Gb Ethernet - SFP+ ¦ 4 x 100Gb Ethernet - QSFP28 ¦ USB: 1 x ¦ Management: RJ-45 |
Power
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 2 (max) |
| Voltage Required | AC 120/230 V / DC -40 -72 V (50/60 Hz) |
| Power Consumption Operational | 300 Watt |
Software / System Requirements
| OS Provided | Cisco IOS XR 6.1 |
