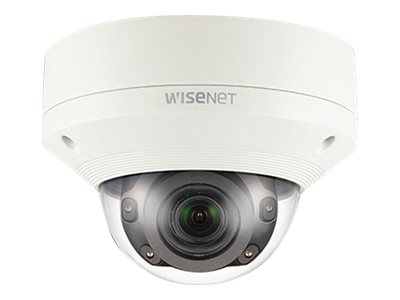

5MP IR Outdoor Dome
- Mfr # XNV-8080R
- UNSPSC # 46171610
- Item # 104852022
- Summary
-
Specifications
- Email Alert
Miscellaneous
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66 |
| Color | Ivory |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 2.4 x |
| Focal Length | 3.9 mm - 9.4 mm |
| Lens Iris | F/1.3 auto iris (DC, P-Iris) |
| Focus Adjustment | Automatic, manual, motorized |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 38.7 - 92.1 |
| Vertical Field of View (degree) | 29 - 67.2 |
Tilting
| Range (degree) | 0 to 67 |
Panning
| Range (degree) | 0 to 354 |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Image Sensor
| Type | 6 MP CMOS 1/1.8" |
| Total Pixels | 3096 x 2094 |
| Effective Pixels | 2616 x 1976 |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
Titling
| Range (degree) | 0 to 67 |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 4.7 in |
| Weight | 2.23 lbs |
Camera
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.07 lux - color - F1.3 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Video Capture | 2560 x 1920 @ 30 fps |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support |
Expansion / Connectivity
| Ports | Composite video ¦ Audio line-in/microphone ¦ Audio line out ¦ USB - Micro-USB Type B |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Power Device | 14 Watt |
