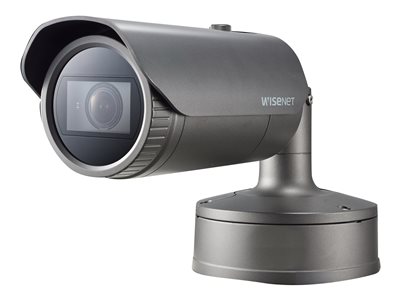

5MP IR Bullet
5MP IR Bullet
- Price:
$1,265.99
- Availability:
- Mfr #: XNO-8080R
- UNSPSC #: 46171610
- Item #: 004675229
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af |
| Color | Dark gray |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 2.5 x |
| Focal Length | 3.7 mm - 9.4 mm |
| Lens Iris | F/1.2 auto iris (DC, P-Iris) |
| Focus Adjustment | Automatic, manual, motorized |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 38.7 - 100.2 |
| Vertical Field of View (degree) | 29 - 72.7 |
Image Sensor
| Type | 6 MP CMOS 1/1.8" |
| Total Pixels | 3096 x 2094 |
| Effective Pixels | 2616 x 1976 |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Width | 3.6 in |
| Depth | 14.5 in |
| Height | 3.6 in |
| Weight | 4.81 lbs |
Camera
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.07 lux - color - F1.2 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Video Capture | 2560 x 1920 @ 30 fps |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), adjustable gain control, Digital Image Stabilization (DIS), tamper-detection, Lens Distortion Correction, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, 2D Digital Noise Reduction Technology, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out ¦ Composite video ¦ USB - Micro-USB Type B |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Power Device | 14.5 Watt |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
