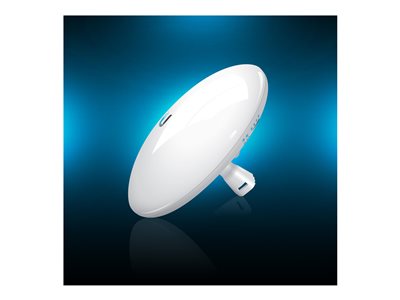

Ubiquiti NanoBeam AC GEN2 NBE-5AC-GEN2 - wireless bridge
Ubiquiti NanoBeam AC GEN2 NBE-5AC-GEN2 - wireless bridge
- Price:
$99.99
- Availability:
- Mfr #: NBE-5AC-GEN2-US
- UNSPSC #: 40101604
- Item #: 004732344
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Pole mount |
| Compliant Standards | IC, FCC, RoHS, IEC 60068-2-6, IEC 60068-2-14, ETSI 300 019, MIL-STD 810G 506.5, IEC 60068-2-11, MIL-STD 810G 509.5 |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | AirMax ac |
| Network / Transport Protocol | DHCP |
| Frequency Band | 5 GHz |
| Status Indicators | Power, WLAN, LAN |
| Features | Manageable, wall mountable, pole mountable, 24KV ESD Protector, management Wi-Fi radio |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Wireless bridge |
| Ruggedized Design | Outdoor |
| Width | 7.4 in |
| Depth | 4.9 in |
| Height | 7.4 in |
| Weight | 18.69 oz |
| Localization | United States |
Processor / Memory / Storage
| Processors Installed | 1 x Atheros MIPS 74KC 720 MHz |
| Max Supported Qty | 1 |
| RAM | 128 MB DDR2 SDRAM |
| Flash Memory | 8 MB |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
Power
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector |
| Power Consumption Operational | 8.5 Watt |
Antenna
| Antenna | Internal |
| Directivity | Directional |
| Gain Level | 19 dBi |
Software / System Requirements
| OS Provided | AirOS |
