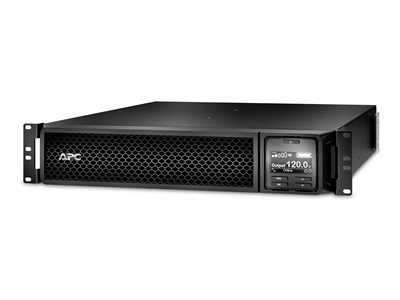

APC Smart-UPS SRT 1500VA RM - UPS - 1.35 kW - 1500 VA
APC Smart-UPS SRT 1500VA RM - UPS - 1.35 kW - 1500 VA
- Price:
$2,056.99
- Availability:
- Mfr #: SRT1500RMXLA
- UNSPSC #: 39121011
- Item #: 004952922
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Temperature probe |
| Cables Included | Power cable 6 ft ¦ Serial cable - external ¦ USB cable - external |
| Rack Mounting Kit | Included |
| Features | LCD display, Eco-Mode, internal bypass, hot-swappable batteries, cold-start function, firmware upgradable, automatic self-test, audible alarm, LED indicators, lightning protection |
| Compliant Standards | IP20, CSA C22.2 No. 107.3, FCC Part 15 A, UL 1778 |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 17 in |
| Depth | 20 in |
| Height | 3.3 in |
| Weight | 48.5 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.4 in |
| Shipping Depth | 29.5 in |
| Shipping Height | 9.7 in |
| Shipping Weight | 65.26 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
Compatibility Information
| Designed For | P/N: SRT48RMBP |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 2 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 5 min at full load ¦ 13 min at half load |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 50 dBA |
General
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Cord Length | 6 ft |
| Output Connectors | 6 x power NEMA 5-15 |
| Color | Black |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 90 - 150 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 47 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Output Voltage | AC 120 V ± 2% - 50/60 Hz |
| Power Capacity | 1.35 kW / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 86.6% at 25% Load, 90.2% at 50% Load, 90.9% at 75% Load, 91% at 100% Load |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - RJ-45 ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
