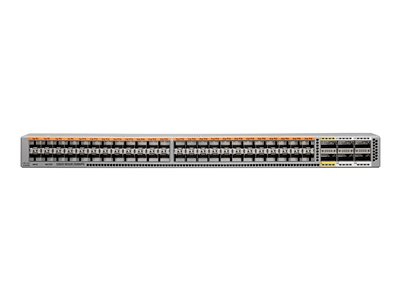

Cisco Nexus 2348UPQ 10GE Fabric Extender - expansion module
Cisco Nexus 2348UPQ 10GE Fabric Extender - expansion module
- Price:
$8,901.99
- Availability:
- Mfr #: N2KC2348UPQ10GE-RF
- UNSPSC #: 43222612
- Item #: 005009951
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2006 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386 |
| Pricing Type | Remanufactured |
Networking
| Ports | Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 + 40 Gigabit QSFP+ x 6 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet |
| Performance | Forwarding performance (full duplex): 480 Gbps ¦ Forwarding performance: 240 Gbps |
| Capacity | Jumbo frame size: 9216 ¦ ACL entries: 256 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, CLI |
| Status Indicators | Port status, power, system |
| Features | Auto-negotiation, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Data Center Bridging (DCB), Management Information Base (MIB), Class of Service (CoS), tagged VLAN, redundant fans, Virtual PortChannel (vPC) technology, hot swappable power supply, 3 fans, FCoE support, In-Service Software Upgrade (ISSU) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 14.1 in |
| Height | 1.7 in |
| Weight | 16.09 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Expansion module |
| Form Factor | Rack-mountable |
Expansion / Connectivity
| Interfaces | 48 x 1Gb Ethernet/10Gb Ethernet - SFP/SFP+ ¦ 6 x 40Gb Ethernet - QSFP+ |
Power
| Voltage Required | AC 120/230 V (50/60 Hz) |
