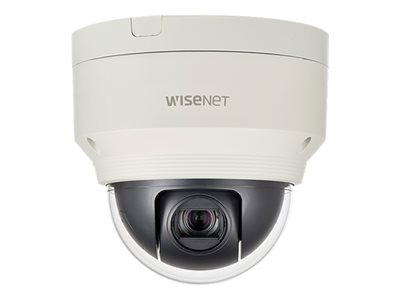

WiseNet 5 network outdoor PTZ camera
WiseNet 5 network outdoor PTZ camera
- Price:
$1,343.99
- Availability:
- Mfr #: XNP-6120H
- UNSPSC #: 46171610
- Item #: 005108919
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IK10, IP66, IEEE 802.1x |
| Color | Ivory |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 5.2 mm - 62.4 mm |
| Lens Iris | F/1.6-3.0 auto iris (DC) |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 0.6 in |
| Horizontal Field of View (degree) | 5.3 - 54.58 |
| Vertical Field of View (degree) | 3 - 32.19 |
Tilting
| Range (degree) | -5 to +185 |
| Speed (degree/sec) | Up to 350 |
Panning
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 350 |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, EAP |
| Control Interface | RS-485 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Image Sensor
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
Titling
| Speed (degree/sec) | Up to 350 |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 6.4 in |
| Weight | 4.19 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - color - F1.6 - shutter 1/30 sec ¦ 0.003 lux - B&W - F1.6 - shutter 1/30 sec |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), tamper-detection, auto tracking, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, auto gain control, auto white balance, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, fog detection |
Expansion / Connectivity
| Ports | Composite video ¦ Audio line-in/microphone ¦ Audio line out - 3.5 mm mono jack ¦ USB - Micro-USB Type B ¦ LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / PoE |
| Power Device | 12 Watt |
