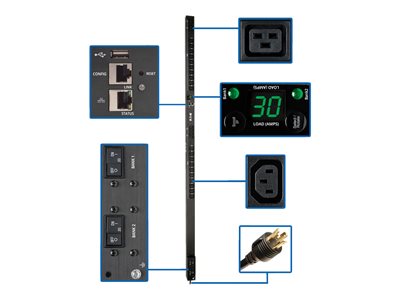

Tripp Lite 5/5.8kW Single-Phase Switched PDU with LX Platform Interfac

Need Help? Contact Zones Online support at 800.408.9663

Compatibility Information

Designed For

P/N: MDA1F34UPX00000, MDA1F38UPX00000, MDK1F34UPX00000, MDK1F38UPX00000

Miscellaneous

Included Accessories	Cable retention brackets, 24 cable ties
Cables Included	Power cable - integrated - 10 ft
Rack Mounting Kit	Included
Features	LCD display, voltage monitoring, current meter, vertical orientation, email alerts support
Compliant Standards	FCC Class A certified, NOM, RoHS, UL 60950-1
TAA Compliant	Yes

Networking

Remote Management Interface	Ethernet 10/100
Remote Management Protocol	SNMP, Telnet, SSH

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Humidity Range Operating

5 - 95% (non-condensing)

General

Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Rack Size	19"
Cord Length	10 ft

Power Device

Input Voltage	AC 200/208/240 V
Frequency Provided	50/60 Hz
Input Wiring	1-phase
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L6-30
Power Output Connectors Details	20 x power IEC 60320 C13 12 A � 4 x power IEC 60320 C19 16 A
Output Voltage	AC 208/240 V 50/60 Hz
Max Electric Current	30 A
Power Capacity	5.8 kW
Circuit Protection	Circuit breaker

Dimensions & Weight (Shipping)
