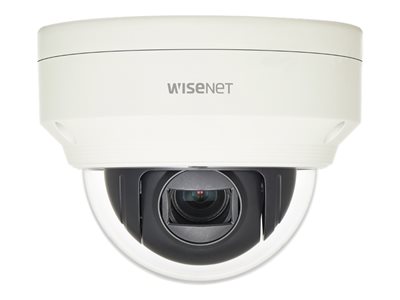

2MP micro PTZ with 4.3X optical zoom bas
2MP micro PTZ with 4.3X optical zoom bas
- Price:
$979.99
- Availability:
- Mfr #: XNP-6040H
- UNSPSC #: 46171610
- Item #: 005137775
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Dome cover |
| Compliant Standards | FCC, cULus, IK10, IP66, IEEE 802.1x |
| Color | Ivory |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 auto iris (DC) |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 5 ft |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Vertical Field of View (degree) | 15.7 - 62.8 |
Tilting
| Speed (degree/sec) | Up to 60 |
Panning
| Range (degree) | 0 to 350 |
| Speed (degree/sec) | Up to 60 |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Computer Interface | USB |
| Control Interface | RS-485 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Image Sensor
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
Titling
| Speed (degree/sec) | Up to 60 |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Connectivity Technology | Wired |
| Width | 5.4 in |
| Depth | 5.4 in |
| Height | 4.2 in |
| Weight | 27.51 oz |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.015 lux - color - F1.4 - shutter 1/30 sec ¦ 0.0015 lux - B&W - F1.4 - shutter 1/30 sec |
| Video Capture | 1920 x 1080 @ 60 fps ¦ 1280 x 1024 @ 60 fps ¦ 1280 x 960 @ 60 fps ¦ 1280 x 720 @ 60 fps ¦ 1024 x 768 @ 60 fps ¦ 800 x 600 @ 60 fps ¦ 720 x 576 @ 60 fps ¦ 640 x 480 @ 60 fps ¦ 640 x 360 @ 60 fps ¦ 320 x 240 @ 60 fps |
| Features | Digital noise reduction, alarm function, progressive scanning, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), adjustable gain control, Highlight Compensation (HLC), Digital Image Stabilization (DIS), Automatic Tracing White (ATW), Camera Tampering Detection, auto tracking, Audio Detection, Smart Codec, video analytics, 300 preset positions, loitering detection, Black light compensation (BLC), Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, built-in gyroscope, fog detection, Image Contrast Enhancement (ICE), motion detection |
Expansion / Connectivity
| Ports | Composite video ¦ Audio line-in/microphone ¦ Audio line out - 3.5 mm mono jack ¦ USB - Micro-USB Type B ¦ LAN - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / PoE |
| Power Device | 9.6 Watt |
