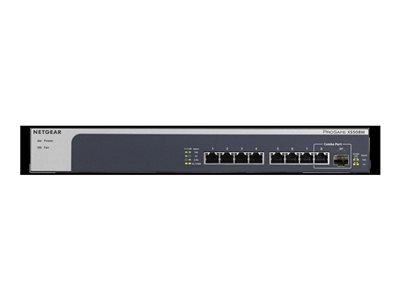

NETGEAR XS508M - switch - 8 ports - unmanaged - rack-mountable
NETGEAR XS508M - switch - 8 ports - unmanaged - rack-mountable
- Price:
$466.99
- Availability:
- Mfr #: XS508M-100NAS
- UNSPSC #: 43222612
- Item #: 005162829
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 1145157 hours |
| Compliant Standards | Plug and Play, VCCI, BSMI, ICES-003, EN55024, AS/NZS 60950-1, UL 60950-1, KCC, KC, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, CNS 14336-1, VCCI V-4/2012.04, VCCI V-3/2015.04 Class B, ANSI C63.4-2014, CISPR 32, EN 55032, EN 55032:2012+AC:2013 Class B, ICES-003:2016 issue 6 Class B, EN 61000-3-2:2014 Class B, EN 6100-3-3:2013, sDoC, CB 60950-1, LVD 60950-1 |
| Localization | Latin America, North America |
Dimensions & Weight
| Width | 12.9 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 3.28 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
General
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 7 x 10 Gigabit Ethernet + 1 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ |
| Performance | Bandwidth: 160 Gbps |
| Capacity | Priority queues: 8 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | DiffServ support, store and forward, Quality of Service (QoS), 128KB packet buffer, Class of Service (CoS), metal housing, 1 fan, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz |
| Status Indicators | Power, fan, link/activity/speed |
Expansion / Connectivity
| Interfaces | 7 x 10GBase-T RJ-45 ¦ 1 x 10Gbit LAN RJ-45/SFP+ |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 39 Watt |
