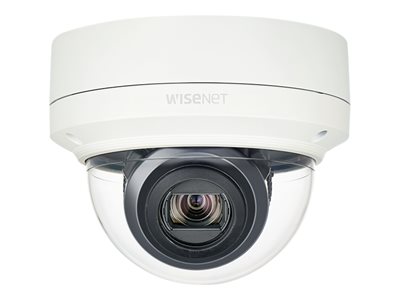

- Product Description Hanwha Techwin WiseNet X XNV-6120 - network surveillance camera - dome
- Device Type Network surveillance camera - fixed - dome - outdoor - vandal-proof
- Audio Yes: two-way audio capability
- Dimensions (WxDxH) 6.3 in x 6.3 in x 5.1 in
- Weight 34.74 oz
- Color Ivory
- Connectivity Technology Wired
- Camera Color - Day&Night - NTSC, PAL
- Optical Zoom 12 x
- Max Resolution 1920 x 1080
- Frame Rate (max) 60 frames per second
- Motion Detection Yes
- Optical Sensor Type CMOS - 1/2.8" - 2.2 MP
- Minimum Illumination 0.03 lux - color - F1.6 - shutter 1/30 sec ¦ 0.003 lux - B&W - F1.6 - shutter 1/30 sec
- Focal Length Control Vari-focal
- Focal Length 5.2 mm - 62.4 mm
- Focus Adjustment Automatic, manual (min distance 7 ft)
- Lens Iris F/1.6-3.0 - auto iris (DC)
- Panning Range (degree) 0 to 354
- Tilting Range (degree) 0 to 75
- Interfaces Composite video, Ethernet 10Base-T/100Base-TX
- Voltage DC 12 V / AC 24 V / PoE Class 3
- Features Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, 300 preset positions, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, Hallway View, fog detection
- Environmental Parameters (operating) -40 °F - 131 °F; 0 - 90% relative humidity
|
