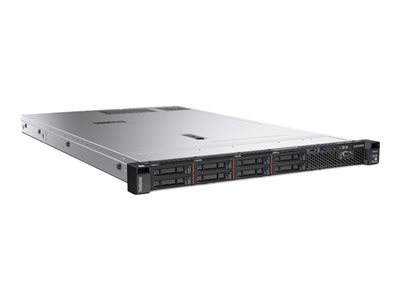

Lenovo ThinkSystem SR570 - rack-mountable - Xeon Silver 4108 1.8 GHz - 16 GB
Lenovo ThinkSystem SR570 - rack-mountable - Xeon Silver 4108 1.8 GHz - 16 GB
- Price:
$3,375.99
- Availability: In stock
- Mfr #: 7Y03A012NA
- UNSPSC #: 43211501
- Item #: 005308286
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Cache Memory
| Installed Size | 11 MB |
| Cache Per Processor | 11 MB |
Miscellaneous
| Compliant Standards | EK1-ITB2000 |
Networking
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Features | Wake on LAN (WoL) |
Dimensions & Weight
| Width | 19 in |
| Depth | 30.6 in |
| Height | 1.7 in |
| Weight | 35.27 lbs |
Environmental Standards
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
Hard Drive
| Type | No HDD |
Graphics Controller
| Graphics Processor | Matrox G200 |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | ThinkSystem RAID 530-8i |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 1.2) and firmware (TPM 2.0) |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Canada, United States |
Processor / Chipset
| CPU | Intel Xeon Silver 4108 / 1.8 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Chipset Type | Intel C622 |
Expansion / Connectivity
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 16 (total) / 15 (free) x DIMM 288-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x LAN-on-Motherboard (LOM) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile |
| Interfaces | 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x USB 2.0 (1 in front) ¦ 1 x VGA (1 rear) ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
Operating System / Software
| OS Provided | No operating system |
RAM
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 15 (empty) |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, Patrol Scrubbing, Demand Scrubbing |
| Configuration Features | 1 x 16 GB |
| RAM Supported | 512 GB registered - ECC ¦ 1 TB Load-Reduced - ECC |
Optical Storage
| Type | No optical drive |
