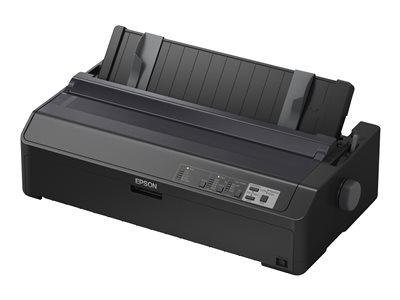

Epson FX 2190II NT - printer - monochrome - dot-matrix
Epson FX 2190II NT - printer - monochrome - dot-matrix
- Price:
$1,228.99
- Availability:
- Mfr #: C11CF38202
- UNSPSC #: 43212110
- Item #: 005348875
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Consumables Included | 1 x printhead - up to 400 million characters ¦ 1 x ribbon (black) - up to 12 million characters |
| MTBF | 25,000 hour(s) |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 B Class A, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CAN/CSA-C22.2 No. 60950-1, UL 62368-1 |
Media Handling
| Media Type | Envelopes, plain paper, continuous forms, cards |
| Max Media Size | Roll (8.5 in), continuous paper 4 in - 16 in (width), 16.54 in x 14.33 in |
| Media Sizes | Roll (8.5 in), 4 in x 4 in, continuous paper 4 in - 16 in (width), 5.83 in x 5.83 in, 16.54 in x 14.33 in |
| Envelope Sizes | US No 10 (4.1 in x 9.5 in), US No 6 (3.6 in x 4.2 in) |
| Media Thickness Range | 0.00256 in - 0.02 in |
| Max Sheets in Multi-Part Form | 6 |
Dimensions & Weight
| Width | 23.2 in |
| Depth | 12.6 in |
| Height | 6.9 in |
| Weight | 20.72 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% |
| Sound Emission (Operating) | 55 dBA |
General
| Printer Type | Workgroup printer - dot-matrix - 9 pin - monochrome |
Environmental Standards
| ENERGY STAR | Yes |
Printer
| Print Speed | Up to 738 char/sec - ultra high speed draft - 12 cpi ¦ Up to 615 char/sec - ultra high speed draft - 10 cpi ¦ Up to 694 char/sec - high speed draft - 12 dpi ¦ Up to 612 char/sec - high speed draft - 10 cpi ¦ Up to 555 char/sec - draft - 12 cpi ¦ Up to 463 char/sec - draft - 10 cpi ¦ Up to 138 char/sec - letter - 12 cpi ¦ Up to 115 char/sec - letter - 10 cpi |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, LAN, serial |
| Max Resolution (B&W) | 240 x 144 dpi |
| Max Resolution (Color) | 240 x 144 dpi |
| Language Simulation | EPSON ESC/P, Okidata Microline, IBM PPDS |
| Barcodes | Matrix 2 of 5, Industrial 2 of 5, Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, Postnet |
Expansion / Connectivity
| Connections | 1 x USB 2.0 ¦ 1 x parallel ¦ 1 x LAN ¦ 1 x serial |
Power
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50 - 60 Hz |
RAM
| RAM Installed (Max) | 128 KB |
Software / System Requirements
| OS Required | Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Microsoft Windows Server 2016 |
