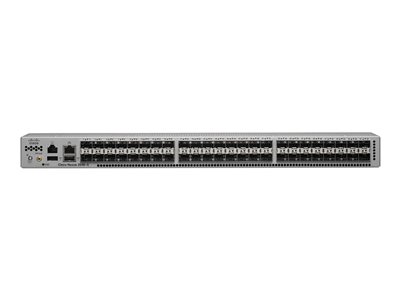

Cisco Nexus 3548 - switch - 48 ports - managed - rack-mountable
Cisco Nexus 3548 - switch - 48 ports - managed - rack-mountable
- Price:
$23,188.99
- Availability:
- Mfr #: N3K-C3548P-XL
- UNSPSC #: 43222612
- Item #: 005394616
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 55022 Class A, EN 300 386 |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 18.4 in |
| Height | 1.7 in |
| Weight | 17.42 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 960 Gbps ¦ Forwarding performance: 720 Mpps |
| Capacity | Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4096 ¦ IPv4 routes (Multicast): 24000 ¦ Host table entries (IPv4): 64000 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ Multiple Spanning Tree Protocol instances: 64 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, MSDP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
| Features | NAT support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, Jumbo Frames support, VRF-Lite, STP Root Guard, UDLD, Rapid PVST+, IPv4 support, DHCP relay, LACP, HSRP support |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Flash Memory | 2 GB |
Expansion / Connectivity
| Interfaces | 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x SFP+ ¦ 1 x USB |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
