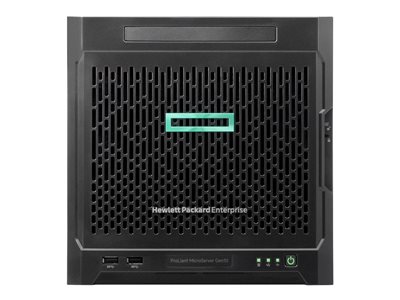

HPE ProLiant MicroServer Gen10 Entry - ultra micro tower - Opteron X3216 1.6 GHz - 8 GB - no HDD
HPE ProLiant MicroServer Gen10 Entry - ultra micro tower - Opteron X3216 1.6 GHz - 8 GB - no HDD
- Price:
$551.99
- Availability:
- Mfr #: 873830-S01
- UNSPSC #: 43211501
- Item #: 005559735
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L2 cache - 1 MB |
| Cache Per Processor | 1 MB |
Miscellaneous
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EMC, FCC CFR47 Part 15, ACPI 5.0, GB 9254, CNS 13438, K24, CISPR 32, EN 55032 |
Networking
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
Dimensions & Weight
| Width | 9.1 in |
| Depth | 10 in |
| Height | 9.3 in |
| Weight | 14.33 lbs |
Hard Drive
| Type | No HDD |
Graphics Controller
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Marvell 88SE9230 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Ultra micro tower |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| Localization | Region: United States |
Processor / Chipset
| CPU Upgradability | Upgradable |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 4 (total) / 4 (free) x internal 3.5" LFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 - low-profile (x1 mode) |
| Interfaces | 1 x VGA ¦ 3 x USB 2.0 (2 rear, 1 internal) ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 (2 front, 2 rear) |
Power
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 200 Watt |
Operating System / Software
| OS Certified | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, ClearOS |
RAM
| Installed Size | 8 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 1600 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 8 GB |
Optical Storage
| Type | No optical drive |
