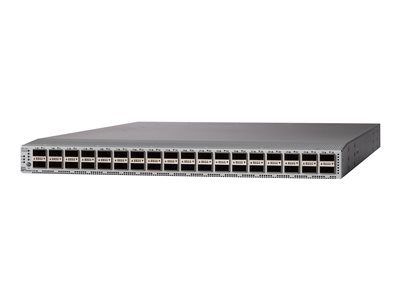

Cisco Nexus 9336C-FX2 - switch - 36 ports - managed - rack-mountable -

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

MTBF	352,590 hours
Compliant Standards	RoHS

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters

General

Packaged Quantity	2 (specifications are for single item)
Device Type	Switch - 36 ports - L3 - managed - with QSFP-40/100-SRBD Transceiver
Subtype	25 Gigabit Ethernet
Enclosure Type	Front and side to back rack-mountable 1U
Ports	36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
Performance	Bandwidth: 7.2 Tbps � Bandwidth: 2.8 bpps
Capacity	Multiple Spanning Tree Protocol instances: 64 � HSRP groups: 490 � ACL entries (ingress): 5000 � Maximum number of links in a port channel: 32 � Maximum number of port channels: 512 � ECMP paths: 64 � Virtual Routing and Forwarding (VRF) instances: 16000 � VLANs supported: 3967 � ACL entries (egress): 2000 � IGMP snooping groups: 32000 � Multicast routes: 32000 � NAT entries: 1023
Routing Protocol	OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Features	STP support, MSTP support, ACL support, port exhaust, vPC technology, MACsec support, VXLAN, SSM, EVPN, 40MB system buffer, 3 fan trays, POAP
RAM	24 GB
Built-in Devices	128 GB SSD

Expansion / Connectivity

Interfaces

36 x 100Gbit/40Gbit LAN QSFP28 � 1 x management RJ-45 � 1 x management SFP+ � 1 x USB � 1 x serial (RS-232)

Power

Power Device	Internal power supply (not installed)
Max Supported Qty	2
Installed Qty	2 (max)
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	777 Watt
