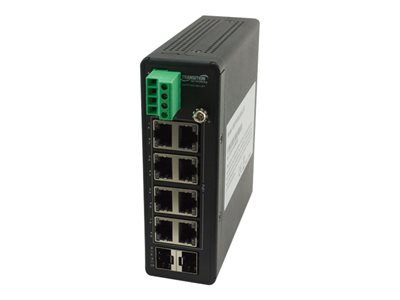

This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (8) 10/100/1000Base-T PoE+ ports with two 100/1000 dual speed SFP slots. It can deliver up to 30 Watts on each PoE+ port simultaneously. The SISTP1040-382-LRT can be used at the edge of a hardened network to provide connections for PoE devices in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.
- Product Description Transition Networks Hardened - switch - 10 ports - unmanaged
- Device Type Switch - 10 ports - unmanaged
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE) PoE+
- PoE Budget 240 W
- Performance Switching capacity: 20 Gbps
- MAC Address Table Size 4K entries
- Jumbo Frame Support 9KB
- Features Store and forward, reset button, fanless, Energy Efficient Ethernet, rugged, metal housing
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
- Power DC 24 - 57 V
- Power Redundancy Yes
- Dimensions (WxDxH) 5.3 in x 5.1 in x 1.7 in
- Weight 16.22 oz
- Manufacturer Warranty 5-year warranty
|
