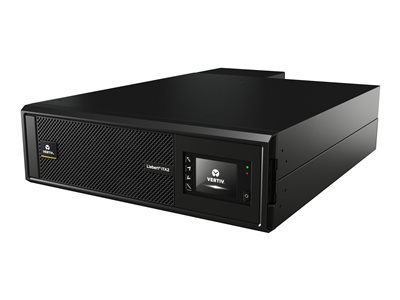

Liebert ITA2 - UPS - 10 kW - 10000 VA - with Liebert Communications Card (IS-UNITY-DP)
Liebert ITA2 - UPS - 10 kW - 10000 VA - with Liebert Communications Card (IS-UNITY-DP)
- Price:
$7,410.99
- Availability:
- Mfr #: ITA2-10KRT208C
- UNSPSC #: 39121011
- Item #: 005767662
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Quantity of Items per Pack | UPS to battery cable |
| Rack Mounting Kit | Included |
| Features | Surge protection, IP20 protection, LCD display, Eco-Mode, double conversion |
| Compliant Standards | CSA, UL, ANSI C62.41, IEC 61000-4-5, EN 61000-4-5, IEC 62040-2, FCC Part 15 A, cULus, EN 62040-2, CSA C22.2 No. 107.3, IEC 62040-1, EN 62040-1, IEC 61000-3-12, UL 1778 5th edition, EN61000-3-12 |
Networking
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | SNMP, Modbus |
Dimensions & Weight
| Width | 16.9 in |
| Depth | 19.7 in |
| Height | 5.1 in |
| Weight | 50.71 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Bundled with | Liebert Communications Card (IS-UNITY-DP) |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208/220 V |
| Input Voltage Range | AC 96 - 144 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase 5 Wire |
| Frequency Required | 60 Hz |
| Output Voltage | 50/60 Hz |
| Power Capacity | 10 kW / 10000 VA |
| Efficiency | 93.4%, 99% Eco mode |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 4 % |
Expansion / Connectivity
| Interfaces | USB ¦ RS-232 ¦ 2 x parallel |
| Expansion Slots | 1 (total) / 0 (free) x Vertiv IntelliSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 33.1 in |
| Shipping Depth | 13.8 in |
| Shipping Height | 25.3 in |
| Shipping Weight | 70.55 lbs |
