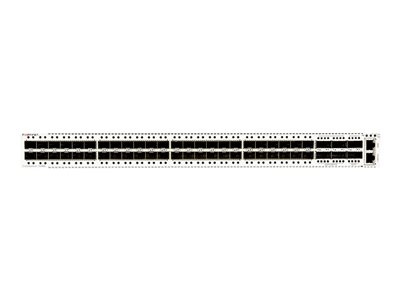

Fortinet FortiSwitch 1048E - switch - 48 ports - managed - rack-mounta
Fortinet FortiSwitch 1048E - switch - 48 ports - managed - rack-mounta
- Price:
$16,130.99
- Availability:
- Mfr #: FS-1048E
- UNSPSC #: 43222612
- Item #: 005871137
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 10 years |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 18.1 in |
| Height | 1.7 in |
| Weight | 18.96 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ + 4 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 1760 Gbps ¦ Packets per second: 1310 Mpps ¦ Latency: < 800 ns |
| Capacity | ACL entries: 8000 ¦ Routing entries: 16000 ¦ Host entries: 32000 ¦ MSTP instances: 15 ¦ MAC addresses: 144000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 48 ¦ Queues per port: 8 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP, VRRP, static IP routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | Flow control, DHCP support, VLAN support, port mirroring, IPv6 support, SNTP support, sFlow, STP support, RSTP support, MSTP support, TFTP support, IPv4 support, LACP, MIB, 12MB packet buffer, tagged VLAN, FTP client, Storm Control |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb |
| RAM | 8 GB |
| Flash Memory | 128 GB |
Expansion / Connectivity
| Interfaces | 48 x 1/10Gbit LAN SFP+ ¦ 6 x 40Gbit LAN QSFP+ ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management ¦ 4 x 100Gbit LAN QSFP28 |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 181.7 Watt |
