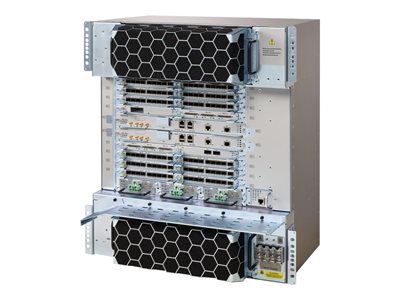

ASR 914 SERIES ROUTER CHASSIS
  • Price:
    $17,051.99
« Back

ASR 914 SERIES ROUTER CHASSIS

ASR 914 SERIES ROUTER CHASSIS

  • Price:
    $17,051.99
  • Availability:
  • Mfr #:  ASR-914
  • UNSPSC #:  43232900
  • Item #:  005939771
  • Add to Shopping List
  • cnet cat code #:  1005
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Rack Mounting Kit Included
Dimensions & Weight
Width 21.3 in
Depth 17.1 in
Height 24.5 in
Weight 100 lbs
Manufacturer Warranty
Service & Support Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Modular expansion base - with 8 x ASR 9XX Carrier card for 2 IMA modules A9XX-2IMA-CARRIER
Enclosure Type Front to back airflow rack-mountable - modular - 14U
Connectivity Technology Wired
Features QoS, fan tray, ISSU
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 50121-4, EN 55022 Class A, EN 300 386
Expansion / Connectivity
Expansion Slots 14 (total) / 14 (free) x expansion slot ¦ 2 (total) / 2 (free) x Route Switch Processor (RSP)
Installed Modules Qty (Max) 0 (installed) / 18 (max)
Power
Power Device Internal power supply (not installed)
Power Redundancy Yes
Installed Qty 3 (max)
