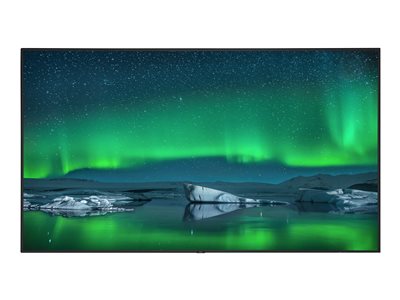

NEC MultiSync C-Series C861Q 86 LED Commercial Display 3840x2160 230W

NEC MultiSync C-Series C861Q 86 LED Commercial Display 3840x2160 230W

  • Price:
    $5,471.99
  • Availability:  In stock
  • Mfr #:  C861Q
  • UNSPSC #:  43211902
  • Item #:  005975719
  • Add to Shopping List
  • cnet cat code #:  10020105
Need Help? Contact your Zones Account Manager or call 800.408.9663
Connections
Connector Type 3 x HDMI 2 x DisplayPort input Audio input LAN Remote control RS-232 USB 2.0 downstream USB 2.0 USB 2.0 upstream DisplayPort output Audio output PoweredUSB Service 2 x speakers output
Miscellaneous
Included Accessories Clamp, eyebolt, SD card cover slot, screw
Cables Included DisplayPort cable - 6.6 ft HDMI cable - 6.6 ft
Compliant Standards DisplayPort 1.2, HDCP 2.2, HDCP 1.3, HDCP 1.4
Remote Control
Type Remote control
Video Features
Input Video Formats 1080i, 1080p, 480/60p, 720/60p, 720/50p, 576/50p, 480/60i, 576/50i
Supported Computer Resolutions 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080, 3840 x 2160, 4096 x 2160
Environmental Standards
TCO Certified TCO Certified Displays 8, TCO Certified Edge Displays
Dimensions & Weight (Shipping)
Width (Shipping) 84.9 in
Depth (Shipping) 12.6 in
Height (Shipping) 50.8 in
Weight (Shipping) 161.82 lbs
Dimensions & Weight Details
Dimensions & Weight Details Panel with stand - 75.9 in x 23.9 in x 44.7 in x 137.6 lbs Panel without stand - 75.9 in x 2.9 in x 43.3 in x 127.4 lbs
Audio System
Speaker System 2 speakers
Output Power / Total 20 Watt
External Speakers Amplifier Power (Total) 30 Watt
Speakers 2 x main channel speaker - 10 Watt
Manufacturer Warranty
Service & Support Limited warranty - advance parts replacement - 3 years
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Humidity Range Operating 20 - 80%
General
Product Type LED-backlit LCD flat panel display
Power Consumption (On mode) 230 W
Diagonal Class 86"
Commercial Use Yes - digital signage
HDR Capable Yes
HDR Technology Hybrid Log-Gamma (HLG)
TV Tuner No tuner
TV Tuner Presence No
Sensors Ambient light sensor (ALS), temperature sensor, NFC sensor
Video Interface HDMI
HDMI Ports Qty 3 ports
PC Interface DisplayPort
Modes Portrait mode, landscape mode, Eco mode, Multi Picture Mode
Picture Enhancements Noise Reduction, Adaptive Contrast
Design Slim Design
Cooling System Fan
Dimensions With stand
Width 75.9 in
Depth 23.9 in
Height 44.7 in
Weight 137.59 lbs
Media Player
Supported Memory Cards microSDHC
USB Port Yes
USB Ports Qty 1
Stands & Mounts
Stand Optional
VESA Mounting Interface 400 x 400 mm, 600 x 400 mm
Flat Panel Mount Interface 400 x 400 mm, 600 x 400 mm
Power
Power Device Power supply
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Consumption Stand by 0.5 Watt
Display
LCD Display Technology S-IPS
Resolution 3840 x 2160
Display Format 4K UHD (2160p)
Image Aspect Ratio 16:9
Frame Rate & Enhancement Technology 60 Hz Refresh Rate
Motion Enhancement Technology 60 Hz Refresh Rate
LCD Backlight Technology LED backlight - local dimming
Coating Anti-glare, 28% haze
Image Contrast Ratio 1200:1
Brightness 350 cd/m
Viewing Angle 178
Viewing Angle (Vertical) 178
Response Time 8 ms
Commercial Features SNMP support, detachable logo, KeyGuide
Additional Features Scheduler Function (with RTC), TileMatrix (10 x 10), Aspect ratio control (ARC), Crestron RoomView, Open Pluggable Specification slot, Carbon Footprint Meter, auto tiling function, automatic alarm e-mails, Point Zoom function, Input Labeling, AMX Beacon Compatible, 24/7 Scheduler, Expansion Slot, DICOM support, NaViSet Administrator 2, screen saver, PJLink, Raspberry Pi Compute Module Compatible, Image Flip, SpectraView Engine Color Control, powered USB port
