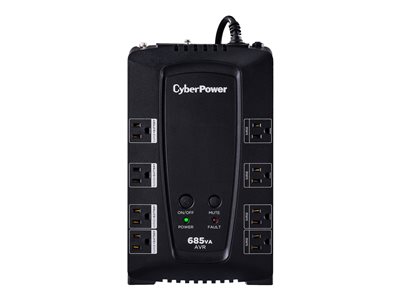

CyberPower AVR Series CP685AVRG - UPS - 390 Watt - 685 VA
CyberPower AVR Series CP685AVRG - UPS - 390 Watt - 685 VA
- Price:
$117.99
- Availability:
- Mfr #: CP685AVRG
- UNSPSC #: 39121011
- Item #: 006014307
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 6 ft ¦ Serial cable - external ¦ USB cable - external |
| Equipment Protection Value | 125000 US Dollars |
| Features | Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, GreenPower UPS Technology, right-angle connector |
| Compliant Standards | cUL, DOC-B, UL 1778, FCC, RoHS |
Networking
| Remote Management Interface | RS-232, USB |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 11 in |
| Depth | 3.5 in |
| Height | 6.8 in |
| Weight | 11.62 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 2 min at full load ¦ 10 min at half load |
| Recharge Time | 8 hours |
| Switchover Time | 4 ms |
| Transfer Time | 4 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
General
| Device Type | UPS - external |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 90-140 V |
| Frequency Provided | 60 Hz ± 1% |
| Frequency Required | 60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 4 x power NEMA 5-15R (surge) ¦ 4 x power NEMA 5-15R (UPS and surge) |
| Output Voltage | AC 120 V ± 5% - 60 Hz |
| Power Capacity | 390 Watt / 685 VA |
| Output Waveform | Stepped approximation to a sinewave |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line ¦ Cable TV - F connector - 1 input line / 1 output line |
| Surge Suppression | Yes |
| Surge Energy Rating | 890 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B |
Software / System Requirements
| Software Included | PowerPanel Personal |
| OS Required | Microsoft Windows 2000/XP/Vista/7, Microsoft Windows 2003, Microsoft Windows Server 2008 |
