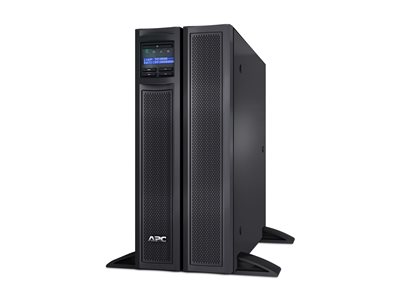

APC Smart-UPS X SMX3000HVTUS - UPS - 2700 Watt - 3000 VA
APC Smart-UPS X SMX3000HVTUS - UPS - 2700 Watt - 3000 VA
- Price:
$2,936.99
- Availability:
- Mfr #: SMX3000HVTUS
- UNSPSC #: 39121011
- Item #: 006043242
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Pricing Type | APC Take-Back |
| TAA Compliant | Yes |
Networking
| Remote Management Interface | USB |
Dimensions & Weight
| Width | 7 in |
| Depth | 19 in |
| Height | 17 in |
| Weight | 85.19 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.1 in |
| Shipping Depth | 24.9 in |
| Shipping Height | 13 in |
| Shipping Weight | 105.23 lbs |
Compatibility Information
| Designed For | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR4012A, AR4017A, AR4032A, AR4038LA, NBPD0150 |
Sustainability Information
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 2 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 6.3 min at full load ¦ 18 min at half load |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dB |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 141 - 255 / 160 - 280 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Power Output Connectors Details | 2 x power NEMA L6-20R ¦ 4 x power IEC 60320 C13 ¦ 3 x IEC jumper ¦ 2 x power IEC 60320 C19 |
| Output Voltage | AC 208 V ± 5% - 50/60 Hz |
| Power Capacity | 2700 watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 645 joules |
Expansion / Connectivity
| Interfaces | 1 x management (USB) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
