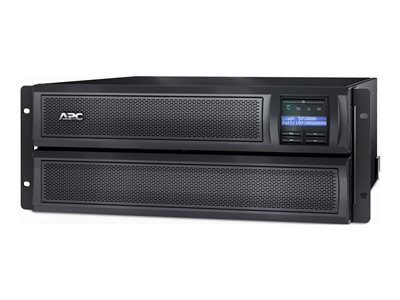

APC Smart-UPS X SMX2KRMLVNCUS - UPS - 1.8 kW - 1920 VA

Need Help? Contact Zones Online support at 800.408.9663

Compatibility Information

Designed For

P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR4012A, AR4017A, AR4032A, AR4038LA, NBPD0150

Miscellaneous

TAA Compliant

Yes

Networking

Remote Management Interface	Ethernet 10/100, RS-232, USB
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH

Sustainability Information

ENERGY STAR	Yes
Packaging Recycled Content	Made of recycled cardboard

Manufacturer Warranty

Service & Support

Limited warranty - 3 years � Limited warranty - battery - 2 years

Battery

Quantity	1
Technology	Lead acid
Run Time (Up To)	11 min at full load � 27.6 min at half load
Features	Maintenance free, sealed, leak-proof

General

Device Type

UPS - rack-mountable

Environmental Standards

ENERGY STAR

Yes

Power Device

UPS Technology	Line interactive
Input Voltage	AC 120 V
Input Voltage Range	AC 70 - 153 V
Frequency Provided	50/60 Hz � 3Hz
Input Wiring	1-phase
Frequency Required	50/60 Hz � 3Hz
Input Connectors	1 x power NEMA 5-30
Power Output Connectors Details	3 x power NEMA 5-15R � 3 x power NEMA 5-20R � 1 x power NEMA L5-20R
Output Voltage	AC 120 V 50/60 Hz
Power Capacity	1.8 kW / 1920 VA
Output Waveform	Sinewave

Expansion / Connectivity

Interfaces	1 x management (USB) � 2 x USB - 4 pin USB Type A � 2 x monitoring � 1 x management (Fast Ethernet) - RJ-45 � 1 x management (RS-232) - RJ-45
Expansion Slots	1 (total) / 0 (free) x SmartSlot
