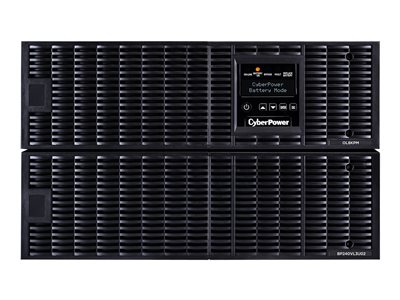

CyberPower Smart App Online OL8KRT - UPS - 8000 Watt - 8000 VA
CyberPower Smart App Online OL8KRT - UPS - 8000 Watt - 8000 VA
- Price:
$7,324.99
- Availability:
- Mfr #: OL8KRT
- UNSPSC #: 39121011
- Item #: 006058942
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Phone cable - external ¦ USB cable - external ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 300000 US Dollars |
| Features | Audible alarm, emergency power off, LED indicators, overload protection, cold-start function, short-circuit protection, Smart Battery Management (SMB), Eco-Mode |
| Compliant Standards | IEC 61000-4-5, RoHS, FCC Part 15 A, UL 1778 5th edition, CSA C22.2 No.107.3-05 |
Networking
| Remote Management Interface | Ethernet, RS-232, USB |
Dimensions & Weight
| Width | 17 in |
| Depth | 26 in |
| Height | 10.5 in |
| Weight | 227.07 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 20 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 12 min at half load ¦ 4.7 min at full load |
| Recharge Time | 5 hours |
| Features | Sealed |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 38 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 6U |
| Rack Size | 19" |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 200-240 V |
| Input Voltage Range | AC 120 - 280 V |
| Frequency Provided | 50/60 Hz ± 0.25Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 1 x hardwire ¦ 3 x power NEMA L6-30R |
| Output Voltage | AC 120/200/208/220/230/240 V ± 2% - 50/60 Hz |
| Power Capacity | 8000 Watt / 8000 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Fuse, circuit breaker |
| Efficiency | 96% Eco mode |
| Power Factor (PF) | 0.99 |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 35.4 in |
| Shipping Height | 25.1 in |
| Shipping Weight | 279.32 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
