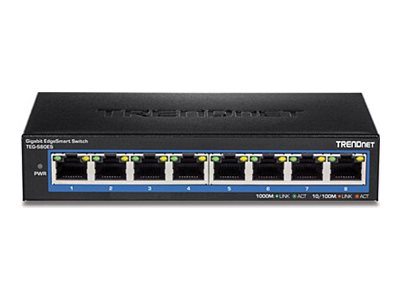

TRENDnet TEG S80ES - switch - 8 ports - smart
TRENDnet TEG S80ES - switch - 8 ports - smart
- Price:
$48.99
- Availability:
- Mfr #: TEG-S80ES
- UNSPSC #: 43222612
- Item #: 006202869
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 1,525,460 hours |
| Compliant Standards | FCC, RoHS, WEEE |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 5.7 in |
| Depth | 3.2 in |
| Height | 1.1 in |
| Weight | 11.18 oz |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
General
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding rate: 11.9 Mpps |
| Capacity | VLAN groups: 32 ¦ Multicast groups: 32 |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Features | IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, CoS, SP, tagged VLAN, cable test, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, block unknown multicast, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3az |
| RAM | 192 KB |
| Status Indicators | Power, PoE, link/activity |
Expansion / Connectivity
| Interfaces | 8 x Gigabit LAN RJ-45 |
Power
| Power Device | External power adapter |
| Power Provided | 5 V - 1 A |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Electric Current Required | 0.2 A |
| Power Consumption Operational | 4.94 Watt |
