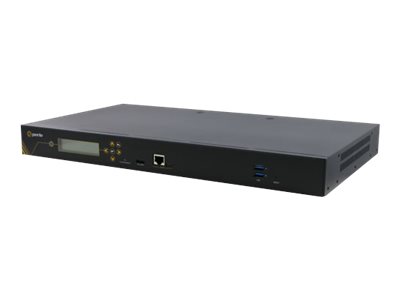

IOLAN SCG34 R CONSOLE SERVER PERP32 X RS232 2 X USB 10/100/1000
IOLAN SCG34 R CONSOLE SERVER PERP32 X RS232 2 X USB 10/100/1000
- Price:
$4,364.99
- Availability:
- Mfr #: 04032954
- UNSPSC #: 43222630
- Item #: 006354618
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rack mount kit |
| MTBF | 83,027 hours |
| Compliant Standards | UL, cUL, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, AES, RoHS, FIPS 140-2, EN 61000-4-8, WEEE, REACH, X.509, DSA, RSA, IP30, Directive 2011/65/EU, EN 50581:2012, FCC CFR47 Part 15 B Class A, CISPR32/EN55032, EN 62368-1, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, SSL |
Networking
| Form Factor | Rack-mountable |
| Ports Qty | 34 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, ICMP/IP, IPSec, SLIP, LPR/LPD, ARP, SMTP, BOOTP, DHCP, PAP, RARP, DDNS, SFTP, CSLIP |
| Routing Protocol | RIP-2, CIDR |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SFTP, SMTP |
| Status Indicators | Transmit, receive, link/activity |
| Features | Flow control, auto-sensing per device, DHCP support, VPN support, BOOTP support, RARP support, ARP support, LDAP support, Syslog support, IPv6 support, IP address filtering, half duplex mode, full duplex mode, firmware upgradable, SNTP support, 15 KV Electrostatic Discharge Protection, tunneling, Trivial File Transfer Protocol (TFTP) support, IPSec NAT-Traversal (NAT-T), IPv4 support, clustering technology, Management Information Base (MIB), microSD card slot, 1.5 KV Magnetic Isolation, 15KV ESD Protector, Internet Control Message Protocol (ICMP), Authentication, Authorization and Accounting (AAA), Secure Com Port Redirector, 2KV Surge protection, IP Security (IPSec) support, 1KV surge protection, TrueSerial technology, L2TP support, DynDNS, Point-to-Point Protocol (PPP) |
| Encryption Algorithm | DES, Triple DES, Blowfish, RSA, RC4, RC2, MD5, ARCFOUR, AES, SSL, SHA-1, ARCTWO, TLS 1.0, SSL 3.0, SSL 2.0, DSA, FIPS 140-2, CAST-128, RIPEMD160, 128-bit AES, 192-bit AES, 256-bit AES, AES-GCM, 256-bit SHA, TLS 1.1, TLS 1.2, AES-CTR, 384-bit SHA |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Compliant Standards | X.509 |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Communications
| Supported Flash Memory Cards | microSD |
General
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | Status LCD, keypad |
| Width | 17.1 in |
| Depth | 10.4 in |
| Height | 1.7 in |
| Weight | 7.54 lbs |
| Localization | United States |
Processor / Memory / Storage
| Processors Installed | 1 x MIPS 1750 500 MHz |
| RAM | 1 GB |
| Flash Memory | 4 GB |
Expansion / Connectivity
| Interfaces | 32 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x micro-USB ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x 1000Base-X - SFP (mini-GBIC) |
Dimensions & Weight (Shipping)
| Shipping Width | 23.2 in |
| Shipping Depth | 14.2 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 9.61 lbs |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 155 Watt |
