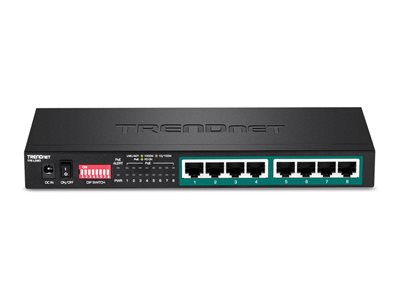

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.
- Product Description TRENDnet TPE LG80 - switch - 8 ports - unmanaged - TAA Compliant
- Device Type Switch - 8 ports - unmanaged
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 65 W
- Performance Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps
- MAC Address Table Size 4K entries
- Jumbo Frame Support 9KB
- Features VLAN support, half duplex mode, full duplex mode, wall mountable, QoS, fanless, built-in DIP switch, port isolation, CoS, metal housing, long range PoE+ up to 200m at 10Mbps
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at, IEEE 802.3az
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 9.4 in x 4.1 in x 1.1 in
- Weight 20.88 oz
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
|
