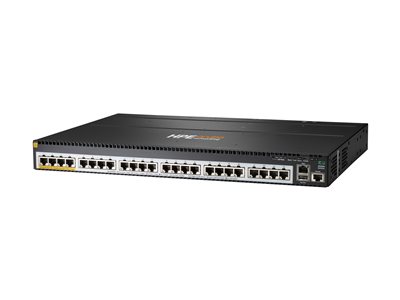

- Product Description HPE Aruba 2930M 24 Smart Rate POE+ 1-Slot - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 5 Gigabit Ethernet
- Ports 24 x 1/2.5/5GBase-T POE+
- Power Over Ethernet (PoE) PoE+
- PoE Budget 860 W
- Performance Latency (1 Gbps): 3.1 µs ¦ Latency (2.5 Gbps): 6.5 µs ¦ Latency (5 Gbps): 4.2 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Throughput: 112 Mpps ¦ Stacking bandwidth: 100 Gbps ¦ Switching capacity: 320 Gbps
- Capacity IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ OSPF routes: 200 ¦ RIP routes: 10000 ¦ Static routes: 256
- MAC Address Table Size 32768 entries
- Jumbo Frame Support 9220 bytes
- Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
- Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
- Power AC 120/230 V (50/60 Hz) - power supply not installed
- Dimensions (WxDxH) 17.4 in x 12.8 in x 1.7 in
- Weight 9.92 lbs
- Manufacturer Warranty Limited lifetime warranty
|
