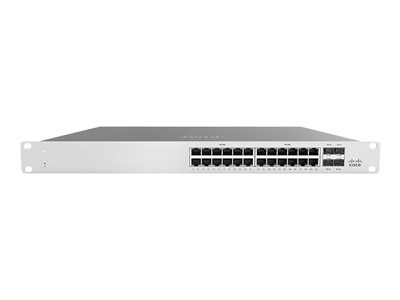

MERAKI MS120-24 1G L2 CLOUD MANAGED 24X
MERAKI MS120-24 1G L2 CLOUD MANAGED 24X
- Price:
$1,610.99
- Availability:
- Mfr #: MS120-24-HW
- UNSPSC #: 43222612
- Item #: 006416607
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 1,179,789 hours |
| Compliant Standards | CSA, FCC, IC, RCM, RoHS |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 9.8 in |
| Height | 1.7 in |
| Weight | 6.02 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable, desktop 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching capacity: 56 Gbps ¦ Forwarding rate: 41.67 Mpps |
| Capacity | VLANs supported: 4094 ¦ MAC forwarding entries: 16000 |
| Jumbo Frame Support | 9578 bytes |
| Remote Management Protocol | SNMP |
| Authentication Method | RADIUS |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (47 - 63 Hz) |
