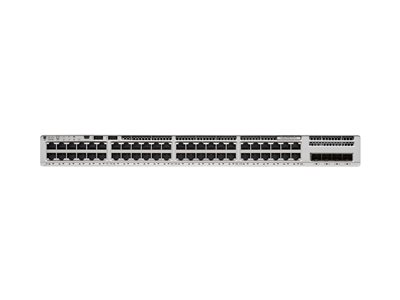

Cisco Catalyst 9200L - Network Advantage - switch - 48 ports - rack-mountable

Cisco Catalyst 9200L - Network Advantage - switch - 48 ports - rack-mountable

  • Price:
    $2,194.99
  • Availability:  In stock
  • Mfr #:  C9200L-48T-4G-A
  • UNSPSC #:  43222612
  • Item #:  006418549
  • Add to Shopping List
  • cnet cat code #:  10050201
Need Help? Contact your Zones Account Manager or call 800.408.9663
  •  Product Description Cisco Catalyst 9200L - Network Advantage - switch - 48 ports - rack-mountable
  •  Device Type Switch - 48 ports - L3 - stackable
  •  Enclosure Type Rack-mountable
  •  Subtype Gigabit Ethernet
  •  Ports 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
  •  Performance Stacking bandwidth: 80 Gbps Switching capacity: 104 Gbps Forwarding rate: 154.76 Mpps
  •  Capacity Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8
  •  MAC Address Table Size 16000 entries
  •  Jumbo Frame Support 9198 bytes
  •  Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
  •  Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
  •  Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
  •  Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
  •  Power AC 120/230 V (50 - 60 Hz)
  •  Power Redundancy Optional
  •  Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
  •  Weight 9.59 lbs
  •  Manufacturer Warranty Limited lifetime warranty
