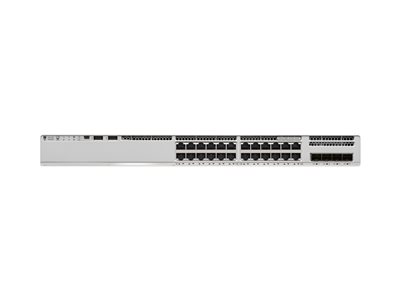

- Product Description Cisco Catalyst 9200L - Network Advantage - switch - 24 ports - rack-mountable
- Device Type Switch - 24 ports - L3 - stackable
- Enclosure Type Rack-mountable
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 740 W
- Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
- Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
- MAC Address Table Size 16000 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Features QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
- Weight 12.13 lbs
- Manufacturer Warranty Limited lifetime warranty
|
