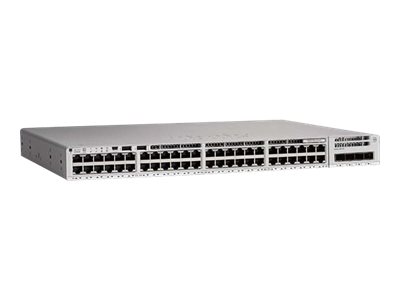

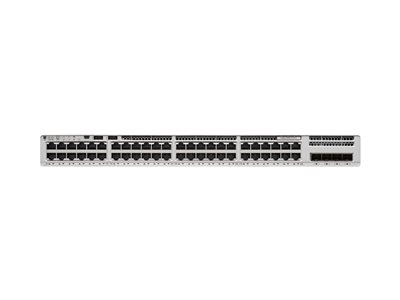

- Product Description Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - rack-mountable
- Device Type Switch - 48 ports - L3 - stackable
- Enclosure Type Rack-mountable
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 104 Gbps ¦ Forwarding rate: 154.76 Mpps
- Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
- MAC Address Table Size 16000 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Features QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
- Weight 9.59 lbs
- Manufacturer Warranty Limited lifetime warranty
|
