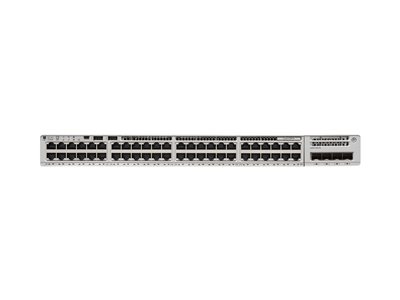

- Product Description Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000
- Performance Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
- Capacity Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size 32000 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Features ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.5 in x 13.8 in x 1.7 in
- Weight 11.02 lbs
|
