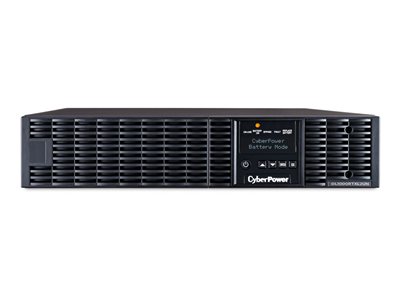

1KVA ONLINE UPS 2U-LCD RMCARD205 RT 3YR
1KVA ONLINE UPS 2U-LCD RMCARD205 RT 3YR
- Price:
$1,272.99
- Availability:
- Mfr #: OL1000RTXL2UN
- UNSPSC #: 26111701
- Item #: 006528151
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ Phone cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 400000 US Dollars |
| Features | Audible alarm, LCD display, GreenPower UPS Technology, overload protection, cold-start function, firmware upgradable, hot-swappable batteries, Eco-Mode, generator compatible, rotatable LCD panel, double conversion, Fast Charge technology |
| Compliant Standards | FCC Part 15 B, RoHS, UL 1778 5th edition, CSA C22.2 No.107.3-05, IEC 61000-4-5 Level 3 |
Networking
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | CLI, Web NMS |
Dimensions & Weight
| Width | 17 in |
| Depth | 16.9 in |
| Height | 3.5 in |
| Weight | 39.59 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 9.3 in |
| Shipping Depth | 21.5 in |
| Shipping Height | 22.5 in |
| Shipping Weight | 53.51 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 3 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 7.4 min at full load ¦ 20 min at half load |
| Recharge Time | 4 hours |
| Transfer Time | 0 ms |
| Switchover Time | 0 ms |
| Features | Sealed |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 100-125 V |
| Input Voltage Range | AC 60 - 150 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 100/110/115/120/125 V ± 2% - 50/60 Hz |
| Power Capacity | 900 Watt / 1000 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1780 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 94% Eco mode |
| Power Factor (PF) | 0.99 |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
