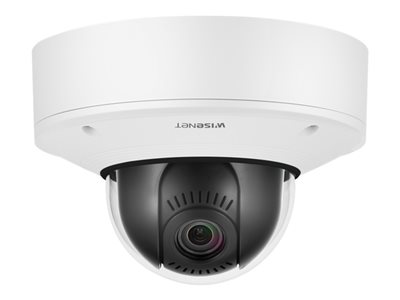

5MP Outdoor PTRZ Dome
5MP Outdoor PTRZ Dome
- Price:
$1,414.99
- Availability:
- Mfr #: XNV-8081Z
- UNSPSC #: 52161545
- Item #: 006836925
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, PIM-SM, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Included Accessories | Rubber cap, ivory skin |
| Compliant Standards | NEMA Type 4X, IP67, IP66, IK10+, IEEE 802.3af, IEEE 802.1x, IP6K9K |
| Color | White, RAL 9003 |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 2.6 x |
| Focal Length | 3.6 mm - 9.4 mm |
| Lens Iris | F/1.2-2.4 auto iris (DC, P-Iris) |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 38.7 - 102.5 |
| Vertical Field of View (degree) | 29 - 74.2 |
| Diagonal Field of View (degree) | 48.6 - 135.5 |
Tilting
| Range (degree) | 0 to 85 |
Image Sensor
| Type | 6 MP CMOS 1/1.8" |
| Effective Pixels | 2616 x 1976 |
Environmental Parameters
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711u |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 4.9 in |
| Weight | 3.86 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.07 lux - color - F1.2 - shutter 1/30 sec ¦ 0.007 lux - B&W - F1.2 - shutter 1/30 sec |
| Video Capture | 2560 x 1920 @ 30 fps |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, people counting, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, fog detection, Handover, Virtual Line detection, Directional Detection |
Panning
| Range (degree) | -175 to +175 |
Expansion / Connectivity
| Ports | USB - Micro-USB Type B ¦ Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12.3 Watt |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
