PCI Express to Serial Adapter 921.4Kbps Windows and Linux Compatible. This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility

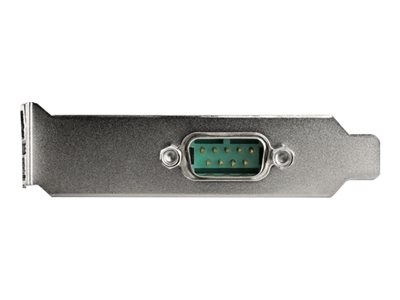

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
128-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
- Product Description StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX1S953LP) - serial adapter - PCIe - RS-232 x 1
- Device Type Serial adapter
- Form Factor Plug-in card - low profile
- Interface (Bus) Type PCI Express x1
- PCI Specification Revision PCIe 1.1
- Ports RS-232 x 1
- Dimensions (WxDxH) 1.8 in x 3.9 in x 0.7 in
- Weight 1.63 oz
- Data Link Protocol RS-232
- Data Transfer Rate 921.6 Kbps
- Processor ASIX AX99100
- System Requirements Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
- Manufacturer Warranty Limited lifetime warranty
|
