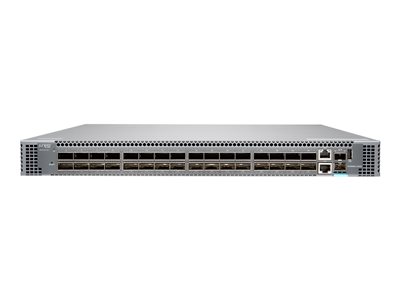

- Product Description Juniper Networks QFX Series QFX5120-32C - switch - 32 ports - managed - rack-mountable
- Device Type Switch - 32 ports - L3 - managed - stackable
- Enclosure Type Front to back airflow rack-mountable 1U
- Subtype 100 Gigabit Ethernet
- Ports 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
- Performance Switching latency: 550 ns ¦ Switching capacity: 3.2 Tbps ¦ Switching capacity: 2 Bpps
- Capacity Host entries: 208000 ¦ VLAN IDs: 4093 ¦ LAG groups: 80 ¦ Active ports in LAG: 64 ¦ IPv4 routes (Unicast, prefixes): 351000 ¦ IPv4 routes (Unicast, host routes): 208000 ¦ ECMP paths: 64 ¦ IPv4 routes (Multicast): 104000 ¦ IPv6 routes (Unicast, prefixes): 168000 ¦ IPv6 routes (Unicast, host routes): 104000 ¦ IPv6 routes (Multicast): 52000 ¦ ARP entries: 64000 ¦ MSTP instances: 64 ¦ VSTP instances: 509 ¦ Mirroring destination ports per switch: 4 ¦ Maximum number of mirroring sessions: 4 ¦ Mirroring destination VLANs per switch: 4 ¦ QoS hardware queues per port: 10
- MAC Address Table Size 288K entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, MSDP, ECMP, MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, SSH-2, CLI, gRPC, OVSDB
- Features ARP support, MPLS support, VLAN support, IGMP snooping, store and forward, IPv6 support, High Availability, WRED, STP support, RSTP support, MSTP support, DCBX support, DHCP snooping, QoS, DHCP relay, DCB, SPQ, VSTP, loop prevention, hot swappable fan, CoS, sFlow v5, redundant fans, cut-through, IGMP filtering, SDWRR, FCoE support, Storm Control, WTD, port filtering, PFC, BPDU, 32MB packet buffer, VXLAN, Link Aggregation, EVPN, SDN, VLAN filtering, MAC address learning, Python runtime, Root Guard, Private VLAN, ZTP, MAC based VLAN, RVI, port-based VLAN, packet jitter, VLAN trunking, MC-LAG, static LSPs, RSVP-based signaling of LSPs, LDP-based signaling of LSPs, LDP over RSVP, MPLS LSR support, image rollback, beacon LED, traffic mirroring, JTI
- Compliant Standards IEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.3 in x 20.3 in x 1.7 in
- Weight 21.12 lbs
|
