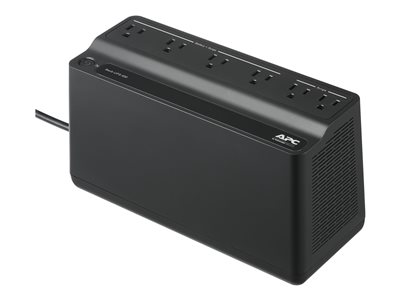

APC Back-UPS BN450M - UPS - 255 Watt - 450 VA
APC Back-UPS BN450M - UPS - 255 Watt - 450 VA
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 5 ft |
| Equipment Protection Value | 75000 US Dollars |
| Features | Audible alarm, LED indicators, standby topology |
| Compliant Standards | RoHS, cTUVus, REACH, FCC Part 15 Class B |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 10 in |
| Depth | 4.1 in |
| Height | 5.5 in |
| Weight | 5.73 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 2.6 min at full load ¦ 10.5 min at half load ¦ 36.7 min at 50 Watts ¦ 15 min at 100 Watts ¦ 4.7 min at 200 Watts |
| Recharge Time | 8 hours |
| Transfer Time | 6 ms |
| Switchover Time | 6 ms |
| Features | Maintenance free, sealed |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
General
| Device Type | UPS - external |
| Color | Black |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 139 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 2 x power NEMA 5-15R (surge) ¦ 4 x power NEMA 5-15R (UPS and surge) |
| Output Voltage | AC 120 V 50/60 Hz |
| Max Electric Current | 5 A |
| Power Capacity | 255 Watt / 450 VA |
| Output Waveform | Squarewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 180 Joules |
Dimensions & Weight (Shipping)
| Shipping Width | 12.4 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 8.7 in |
| Shipping Weight | 6.61 lbs |
