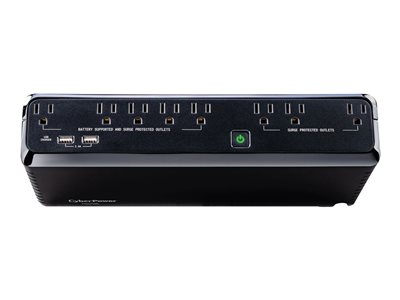

700VA/370W STANDBY UPS 8 X NEMA5-15R NEMA 5-15P 3YR WTY
700VA/370W STANDBY UPS 8 X NEMA5-15R NEMA 5-15P 3YR WTY
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 5 ft ¦ USB cable - external |
| Equipment Protection Value | 100000 US Dollars |
| Features | Audible alarm, GreenPower UPS Technology, wire fault indicator, Human Interface Device (HID) support, fault alarm, slim line, overload alarm |
| Compliant Standards | cUL, UL 1778, CEC, FCC DOC Class B |
Networking
| Remote Management Interface | USB |
Dimensions & Weight
| Width | 12.8 in |
| Depth | 2.8 in |
| Height | 5.4 in |
| Weight | 6.77 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 6 in |
| Shipping Depth | 14.3 in |
| Shipping Height | 6.8 in |
| Shipping Weight | 7.21 lbs |
Software / System Requirements
| Software Included | PowerPanel Personal |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 5.5 Ah |
| Run Time (Up To) | 9 min at half load ¦ 2 min at full load |
| Recharge Time | 8 hours |
| Switchover Time | 8 ms |
| Transfer Time | 8 ms |
| Features | Maintenance free, sealed |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
General
| Device Type | UPS - external |
| Color | Black |
Power Device
| UPS Technology | Off-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 96 - 140 V |
| Frequency Provided | 50/60 Hz ± 1% |
| Frequency Required | 50/60 Hz ± 3% |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 3 x power NEMA 5-15R (surge) - 120 V ¦ 5 x power NEMA 5-15R (UPS and surge) - 120 V ¦ 2 x 4 pin USB Type A |
| Output Voltage | AC 120 V + 5% / - 5% - 50/60 Hz |
| Max Electric Current | 12 A |
| Power Capacity | 370 Watt / 700 VA |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 890 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x USB - 4 pin USB Type B |
