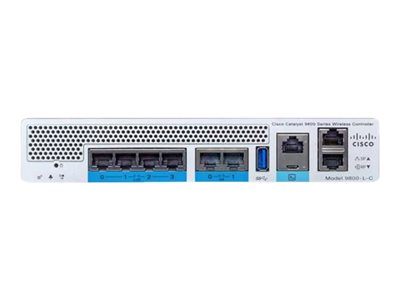

Cisco Catalyst 9800-L Wireless Controller_Copper Uplink
Cisco Catalyst 9800-L Wireless Controller_Copper Uplink
- Price:
$6,485.99
- Availability:
- Mfr #: C9800-L-C-K9
- UNSPSC #: 43222631
- Item #: 007352793
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | VCCI, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, AS/NZS CISPR 22, CNS 13438, EN 300 386, KN32, UL/CSA60950-1, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, IEEE 802.1x |
Networking
| Form Factor | Rack-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Performance | Throughput: 5 Gbps |
| Capacity | Maximum number of access points: 250 ¦ Maximum number of clients: 5000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096 |
| Status Indicators | Power, system, link/activity |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CAPWAP support, Internet Control Message Protocol (ICMP), User Datagram Protocol (UDP), Datagram Transport Layer Security (DTLS) |
| Encryption Algorithm | Triple DES, AES, IKE, SSL, TLS, WPA, WPA2, PKI, ESP, CRL, CCM, CCMP |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
General
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 8.5 in |
| Depth | 9.1 in |
| Height | 1.6 in |
| Weight | 3.95 lbs |
Expansion / Connectivity
| Interfaces | 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB - Type A ¦ 1 x mini-USB - Type B ¦ 1 x redundancy ¦ 4 x 10Gb Ethernet - RJ-45 ¦ 4 x 1/2.5GBase-T - RJ-45 |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 86.9 Watt |
| Power Provided | 110 Watt |
Software / System Requirements
| OS Provided | Cisco IOS XE |
