The FortiGate network appliances represent the enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture, that provides extremely high throughput and exceptionally low latency, while delivering excellent security effectiveness and consolidation.

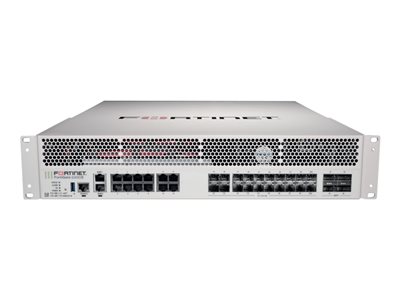

- Product Description Fortinet FortiGate 2200E - UTM Bundle - security appliance - with 1 year FortiCare 24X7 Service + 1 year FortiGuard
- Device Type Security appliance
- Bundled Services 1 year FortiCare 24X7 Service + 1 year FortiGuard
- Form Factor Rack-mountable - 2U
- Processor FortiASIC CP9/NP6
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet
- Performance IPS throughput: 16.5 Gbps ¦ NGFW throughput: 13.5 Gbps ¦ Threat protection throughput: 11 Gbps ¦ Firewall throughput (1518-byte UDP): 158 Gbps ¦ Firewall throughput (512-byte UDP): 155 Gbps ¦ Firewall throughput (64-byte UDP): 100 Gbps ¦ Firewall latency (64-byte UDP): 4 µs ¦ Firewall throughput: 150 Mpps ¦ VPN throughput (SSL): 10 Gbps ¦ SSL inspection throughput: 17 Gbps ¦ VPN throughput (512-bit IPSec): 98 Gbps ¦ Application control (AVC) throughput: 52 Gbps ¦ CAPWAP throughput: 60 Gbps
- Capacity Concurrent TCP sessions: 24000000 ¦ New TCP sessions per second: 500000 ¦ Firewall policies: 100000 ¦ Gateway to gateway IPSec VPN Tunnels: 20000 ¦ Client to gateway IPSec VPN tunnels: 100000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL connections per second: 9500 ¦ Concurrent SSL connections: 2500000 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 128 ¦ Number of FortiAP devices: 1024 ¦ Number of FortiToken devices: 20000 ¦ Maximum number of registered endpoints: 20000
- Included Accessories 2 x 10Gb Ethernet SR SFP+ transceiver
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.4 in x 21.9 in x 3.5 in
- Weight 41.45 lbs
|
