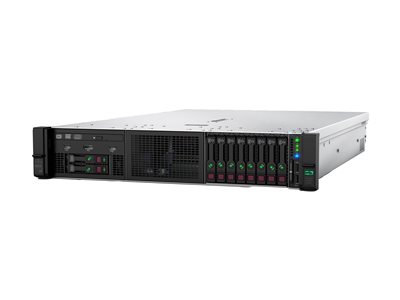

HPE DL380 GEN10 4208 1P 32G NC 12LFF SVR
HPE DL380 GEN10 4208 1P 32G NC 12LFF SVR
- Price:
$7,250.99
- Availability:
- Mfr #: P20172-B21
- UNSPSC #: 43211501
- Item #: 007379887
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 11 MB |
| Cache Per Processor | 11 MB |
Miscellaneous
| Included Accessories | Cable management arm, 6 hot plug high performance fans |
| Compliant Standards | AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Pricing Type | BTO |
Networking
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HPE 366FLR |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 28.8 in |
| Height | 3.4 in |
| Weight | 32.54 lbs |
Environmental Standards
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
Hard Drive
| Type | No HDD |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Version | 3.0 |
Storage Controller
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P816i-a |
| Channel Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 4 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | Battery |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: Worldwide |
Processor / Chipset
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C621 |
Expansion / Connectivity
| Bays | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
| Slots | 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HPE iLO - RJ-45 ¦ 1 x VGA ¦ 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
Operating System / Software
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS |
| Software | HPE Server UEFI |
RAM
| Installed Size | 32 GB (installed) / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC |
Optical Storage
| Type | No optical drive |
