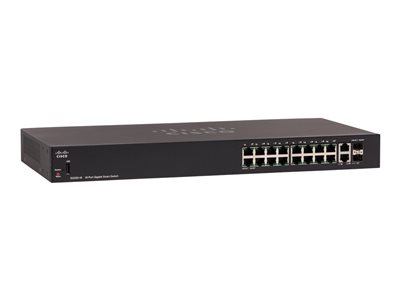

Cisco 250 Series SG250-18 - switch - 18 ports - smart - rack-mountable

Cisco 250 Series SG250-18 - switch - 18 ports - smart - rack-mountable

  • Price:
    $277.99
  • Availability:
  • Mfr #:  SG250-18-K9-JP
  • UNSPSC #:  43222612
  • Item #:  007423551
  • Add to Shopping List
  • cnet cat code #:  10050202
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Rack Mounting Kit Included
MTBF 1,425,277 hours
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization Japan
Dimensions & Weight
Width 17.3 in
Depth 8 in
Height 1.7 in
Weight 4.59 lbs
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day Limited warranty - power supply and fans - 1 year
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 122 F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -4 F
Max Storage Temperature 158 F
Humidity Range Storage 10 - 90% (non-condensing)
General
Device Type Switch - 18 ports - L3 - smart
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 + 2 x combo Gigabit Ethernet/Gigabit SFP
Performance Switching capacity: 36 Gbps Switching capacity (64-byte packet size): 26.78 Mpps
Capacity Active VLANs: 256
MAC Address Table Size 8K entries
Jumbo Frame Support 9KB
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR
Remote Management Protocol SNMP, RMON, Telnet, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm MD5, SSL
Authentication Method RADIUS
Features DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, fanless, 12MB packet buffer, SNMP support, Cisco Discovery Protocol
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators System, link/speed
Expansion / Connectivity
Interfaces 16 x 1000Base-T 2 x 1000Base-T RJ-45 2 x Gigabit LAN SFP
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
