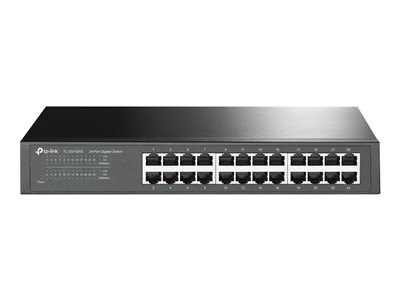

24PORT GIGABIT DESKTOP/RACKMOUNT SWITCH
24PORT GIGABIT DESKTOP/RACKMOUNT SWITCH
- Price:
$90.99
- Availability:
- Mfr #: TL-SG1024S
- UNSPSC #: 43222612
- Item #: 007439438
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
Dimensions & Weight
| Width | 11.6 in |
| Depth | 7.1 in |
| Height | 1.7 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity: 48 Gbps ¦ Packet forwarding rate: 35.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, QoS, fanless, DSCP support, MAC address learning, Green Technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p |
| Built-in Devices | LED panel |
| Status Indicators | Power, 1000M device connected, link/activity |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 13.1 Watt |
