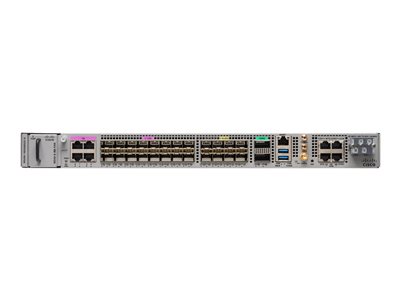

- Product Description Cisco Network Convergence System 540 - router - rack-mountable
- Device Type Router
- Enclosure Type Side to side airflow rack-mountable - 1U
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
- Performance Performance: 300 Mpps
- Jumbo Frame Support Yes
- Network / Transport Protocol RSVP, DHCP
- Routing Protocol IS-IS, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), RSVP, Two-Way Active Measurement Protocol (TWAMP)
- Remote Management Protocol SNMP
- Features VLAN support, WRED, QoS, LLDP support, DHCP relay, LACP, NetFlow, MIB, VRF, 2 fans, LDP, EVPN, iPXE, FFR, AAA, VOQ, L2VPN support, ZTP, SPAN, IRB, ERSPAN, T-LDP, Q-in-Q tunneling, LFA, LAG, BVI, MPLS LSR support, IP unicast, RPM, CDP, BD, EFP, BGP-LU
- Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), ITU-T G.8032, IEEE 1588-2008, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8273.2, ITU-T G.8275.2, MEF 3.0
- Power DC -40 -72 V
- Dimensions (WxDxH) 17.3 in x 11 in x 1.7 in
- Weight 12.13 lbs
- Manufacturer Warranty 1-year warranty
|
